Our Services

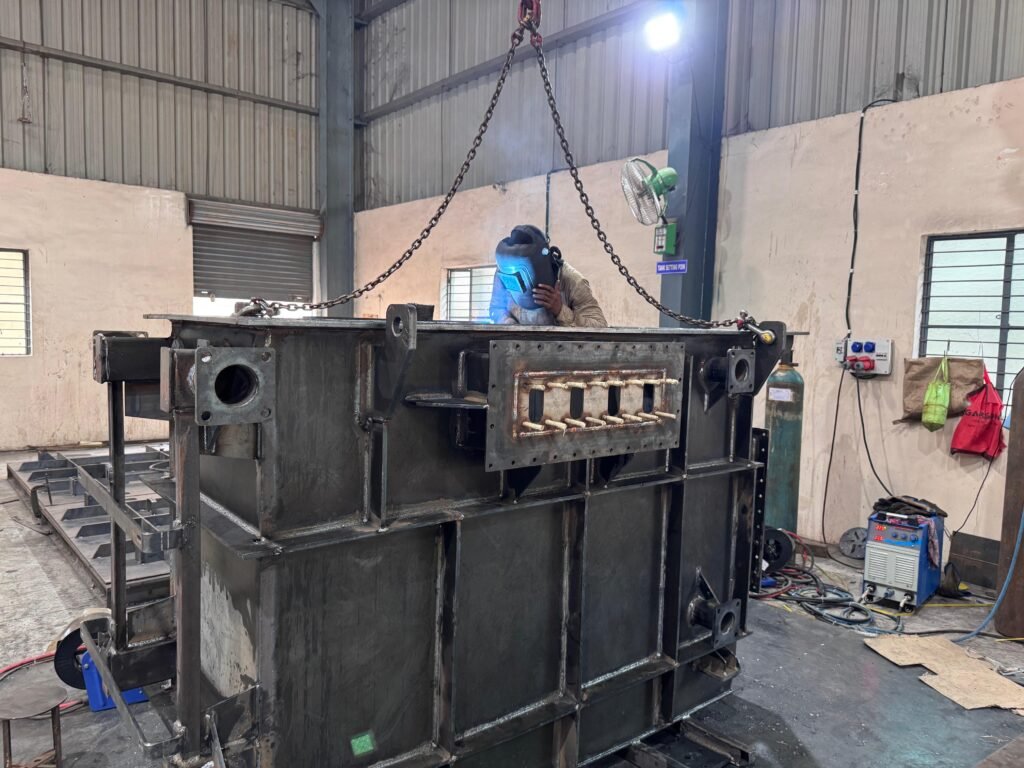

Transformer Fabrication
Range: 100KVA to 100MVA
Components Manufactured:
Core clamping structures
Tank bodies & conservators
Cable boxes
Compliance:
BIS & IEC standards
Routine dielectric & pressure tests
Laser Cutting Services
Technology: TRUMPF CO₂ & Fiber Laser Machines
Accuracy: ±0.1mm
Materials & Thickness:
| Material | Max Thickness |
|---|---|
| Mild Steel | 25mm |
| Stainless Steel | 25mm |
| Aluminum | 20mm |
| Brass/Copper | 8mm |
Applications:
Industrial machine components
Electrical enclosures & panels
Automotive parts
Architectural metalwork
AutoCAD Design & Engineering Services
Capabilities:
✔ 2D Drafting & 3D Modeling
✔ DFM (Design for Manufacturing) Optimization
✔ Reverse Engineering from Physical Samples
✔ GD&T-Compliant Technical Drawings
Software Expertise:
AutoCAD | SolidWorks
Sheet Metal Design Modules
BOM (Bill of Materials) Generation
Applications:
Custom component design
Fabrication drawing conversion
Assembly process planning
CNC Bending & Sheet Metal Forming
Equipment: 150-Ton Hydraulic Press Brake
Capabilities:
Max Bending Length: 3200mm
Angle Accuracy: ±0.5°
Complex Geometries: Box bends, U-channels, custom profiles
Quality Assurance:
Laser-guided backgauges for repeatability
Prototype testing before mass production
Metal Fabrication & Welding
Processes Offered:
| Method | Application |
|---|---|
| MIG/TIG Welding | Structural steel assemblies |
| ARC Welding | MS components |
Supporting Services:
-
Jig & fixture design
-
Sub-assembly integration
-
Dimensional inspection reports
